Product Introduction

The marc2 dispenser system is an embedded robot suitable for various micro-dispensing applications. Its modular design and pre-installed interfaces allow for customized adjustments. We develop suitable solutions for your specific applications.

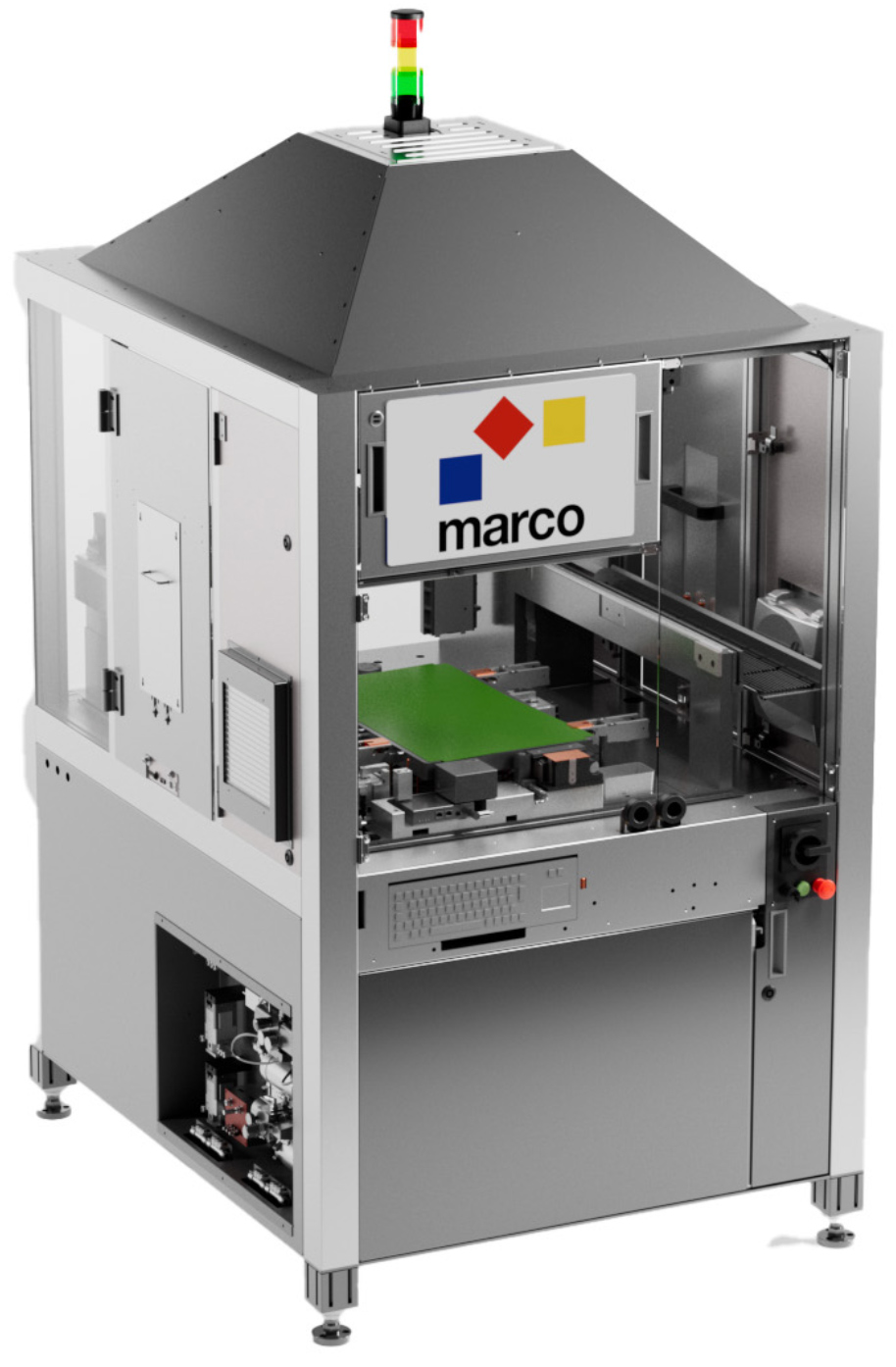

marc2 Dispenser System

• Higher Precision and Versatility
  The marc2 Gantry System represents a further development of the marc1 Gantry System: it delivers the same functionality as the marc1 Gantry System with a larger footprint.

• Enhanced Dispensing Capability
  The marc2 Gantry System, specially developed by marco Dispensing, is integrated with high-tech dispensing heads, enabling precise dispensing of minimum amounts of materials such as solder paste, epoxy silver and underfill.

• Robust and Lightweight Design
  Despite a tool load capacity of up to 13 kg, the embedded robot design enables high-speed dispensing with acceleration up to 3g while maintaining stable repeatability. The working range of each axis of the marc2 is 619 x 940 x 126 mm.

• A Single Control Unit
  The dispensing inline robot integrates state-of-the-art robotics with a highly advanced Dispensing Control Unit (DCU), achieving synchronization of dispensing and motion control and setting a new benchmark for the industry.

• User-Friendly Operation
  The marco marc2 Gantry System offers a complete solution featuring a spacious work surface, compact footprint and lightweight design. The rotatable HMI touchscreen and collapsible keyboard greatly enhance user-friendliness.

• Modular Design
  Thanks to its modular design, the marc2 Gantry System can be easily tailored to customers' requirements for medium, air and cooling water supply.

• Simple Configuration
  The work unit and bed are equipped with a large number of pre-installed pneumatic and electronic interfaces, allowing for quick integration of additional units and tools.




The MARC2 Gantry System is specifically designed to meet the stringent requirements of modern production environments, delivering superior precision and versatility for your operations.

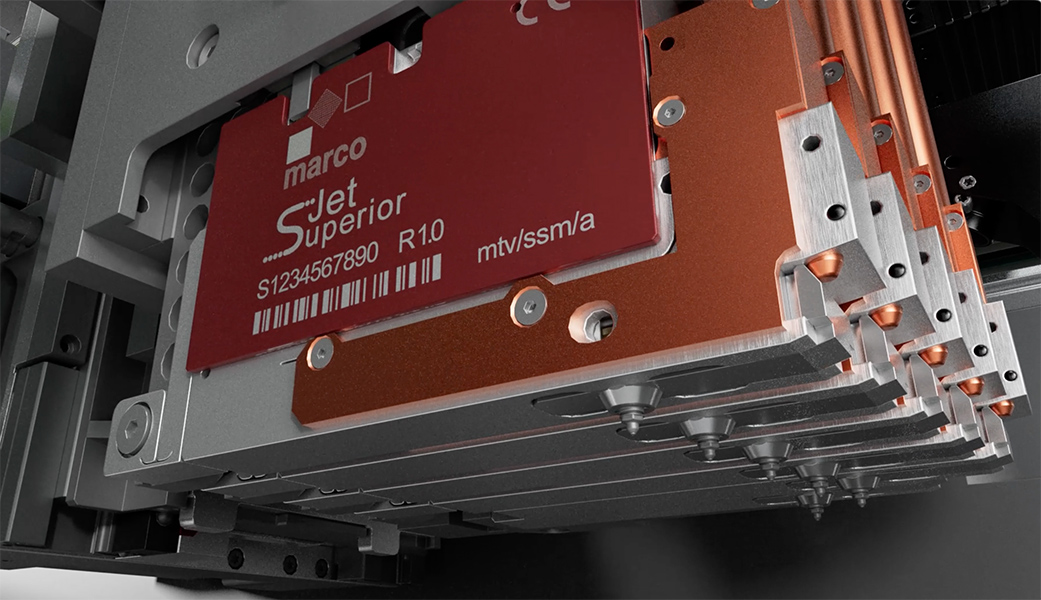

Multi-Head Jetting System

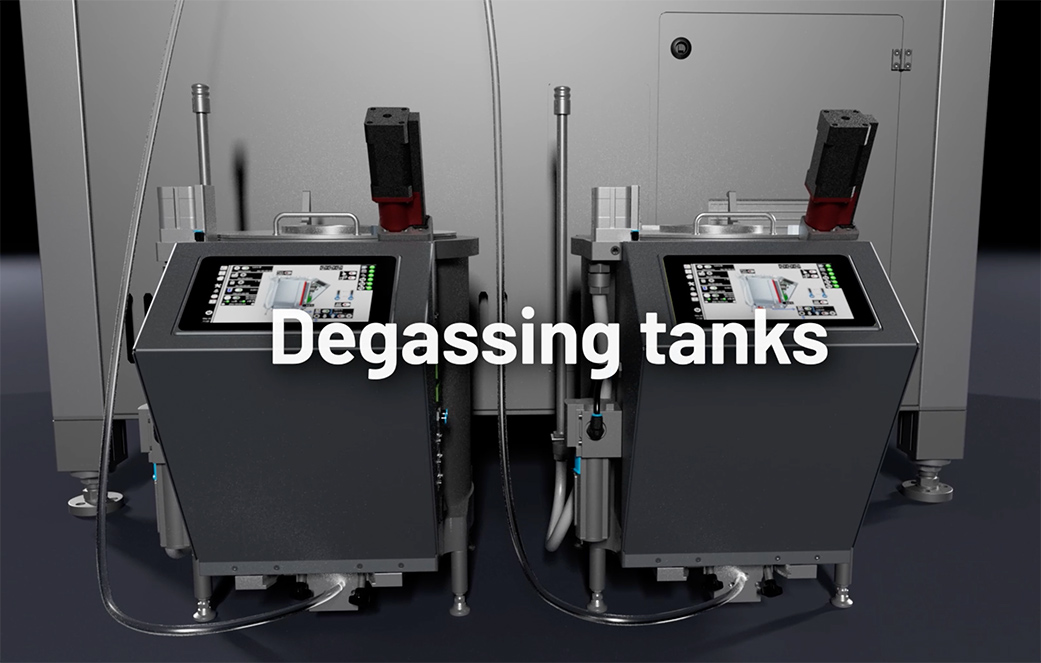

Two-Component De-aeration System
