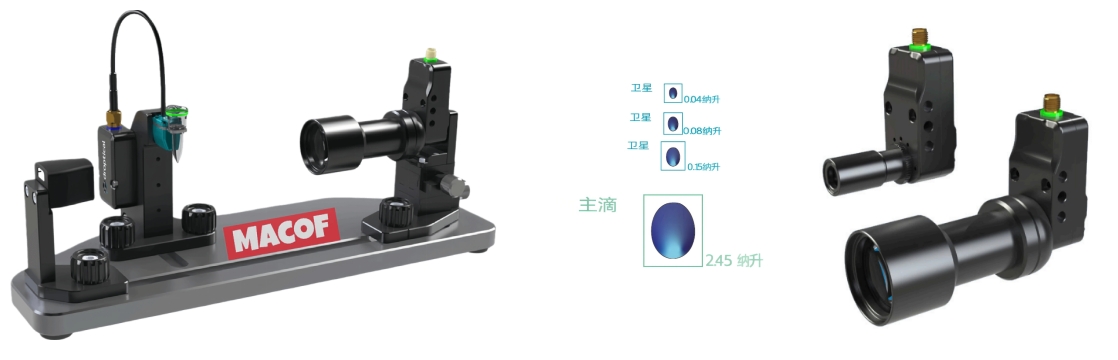

Product Introduction

UltiStrobe is a high-precision universal dispensing monitor designed to monitor the droplet flow of non-contact metering systems in specific processes. It is intuitive, flexible and high-performance.

Suitable for Various Industries

• Biotechnology: Precise application of analytical matrices for laboratory samples.

• Chemistry: Metering and non-contact mixing control of chemical liquids. Our imaging system is highly versatile and adaptable to numerous technical applications.

• Pharmaceuticals: Precise metering of ingredients in pharmaceutical formulations.

• Manufacturing: Adhesive application, potting, solder paste dispensing, etc.

What Makes Our System Unique?

UltiStrobe is designed for monitoring dispensing systems. Thanks to the camera's flexible head and intelligent design, the droplet viewer can be easily integrated into almost any location. Whether in the laboratory or in production, UltiStrobe offers numerous advantages, helping you save time and costs while improving the quality of fluid dispensing.

Advantages

• Enhanced Visibility

• It couldn’t be simpler! UltiStrobe makes dispensing process analysis enjoyable again. You can view your dispensing process on the display within seconds. No installation, no complex software required: it’s plug-and-play with automatic interpretation.

• Sustainability

• The more you know about your dispensing process, the easier it is to identify deviations and their impacts. This reduces reject rates, exerts a positive effect on sustainability, and significantly improves production efficiency and effectiveness.

• Flexibility

• Every liquid and every dispensing requirement is unique. UltiStrobe adapts flexibly and is ready to meet any challenge. Whether it is zooming, resolution adjustment or positioning, none of these will be a problem for UltiStrobe.

• Usability

• UltiStrobe is designed to be plug-and-play, both electrically and mechanically. The software is intuitive to use and runs directly on the device itself, so the camera can be used with any equipment without the need for installation.

UltiStrobe

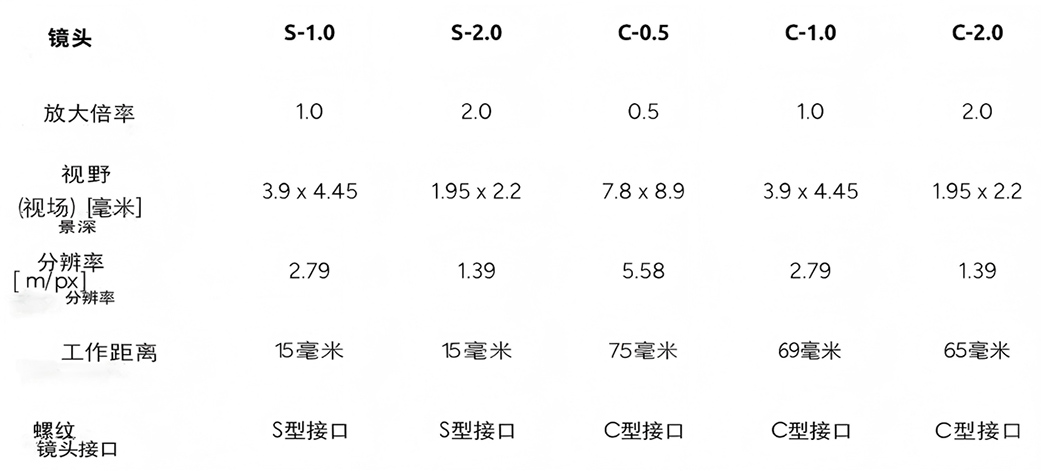

Flexible DropWatcher Lenses for Different Applications

Liquids, conditions, and requirements vary. We offer two standardized connections for one lens to provide maximum flexibility. Do you need to find the perfect lens support for your application? We can customize your project.

Droplet Precision Analysis

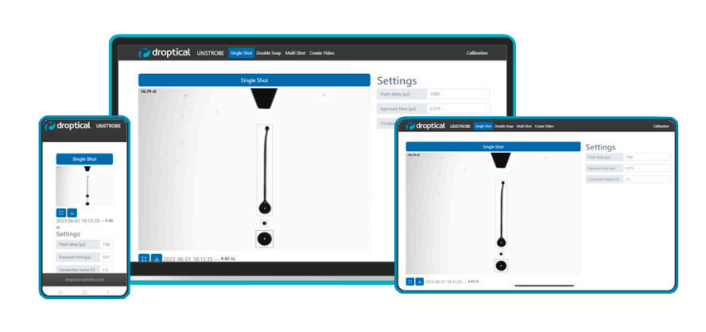

Web-GUI

The analysis unit of UltiStrobe is equipped with an integrated web server for intuitive process setup. This is used for evaluation functions, evaluation criteria, or statistical analysis. GPIO or database connections can also be configured. No installation or extensive training is required. You can control it with just a standard browser. There is no need to adjust electrical wiring, and the dispensing process can be visualized within minutes.

Video Analysis

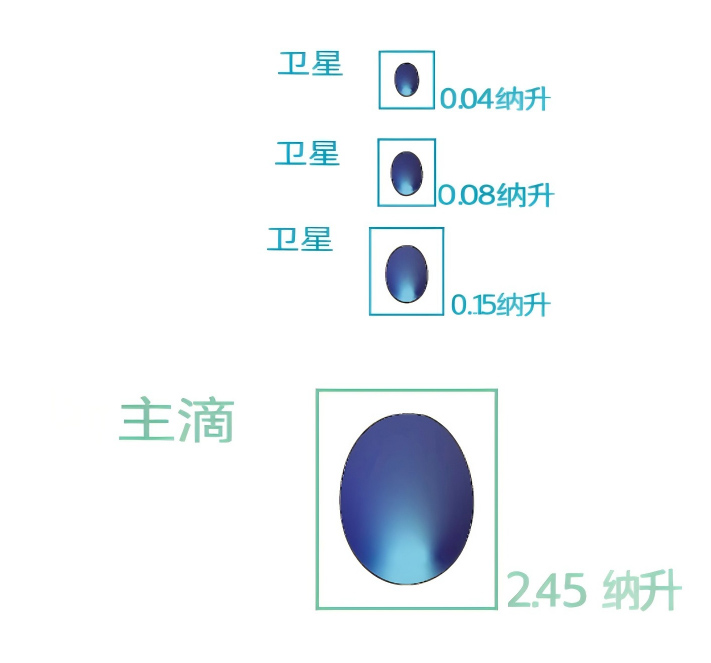

A single video contains over 1,000 images. With the virtual video function, you can not only view snapshots but also analyze the entire dispensing performance—including training, satellite droplets, breakup, dynamics, splashing, and more. Simply input the desired time interval and resolution, and the video will be ready for use.

UltiStrobe

UltiStrobe is a high-precision universal droplet viewer suitable for non-contact dispensing systems. It is intuitive to use, flexible and high-performance.

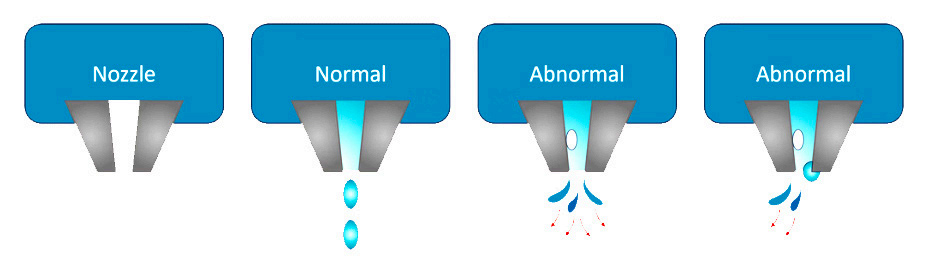

Nozzle Monitoring

Liquid residues on the nozzle have a negative impact on jetting quality, such as altering the flight direction or volume of droplets. With UltiStrobe, the nozzle status can be monitored in real time. Cleaning as needed saves valuable process time while reducing waste products.

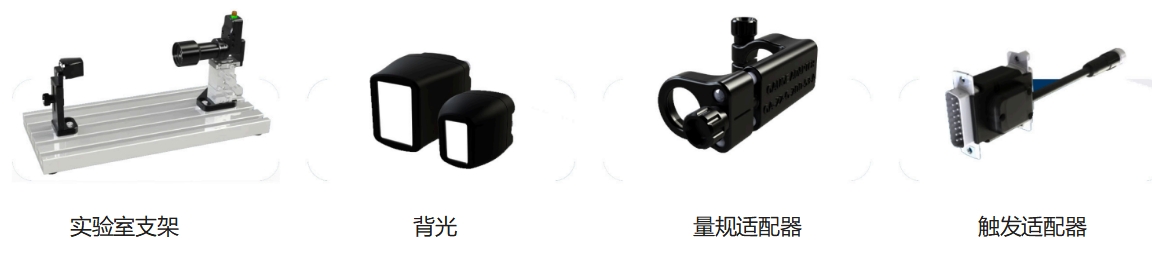

Accessories：

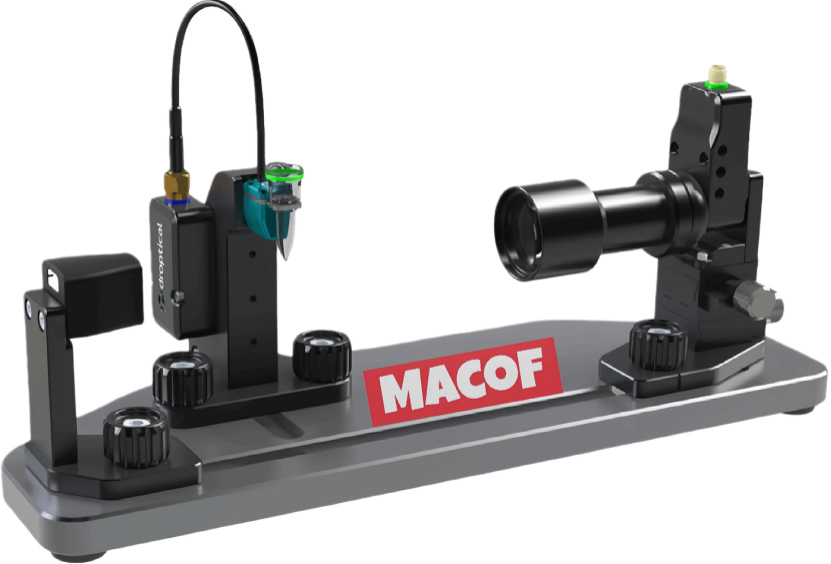

The sturdy aluminum channel plate is suitable for any office desk, laboratory or production area. The standard backlight is applicable to common dispensing applications. For particularly small and fast droplets, we recommend a high-power backlight. Tool-free replacement is supported. Calibration is simplified. With the plug-in connector of the trigger adapter, calibration can be performed without modifying the existing wiring. The calibration values of the camera can be controlled and adjusted in a very short time. Insert it between the dispensing controller and the connection cable, and UltiStrobe is ready for immediate use.
