Product Introduction

Multifunctional & Customizable, High Integrated Strength

High Vacuum & Bubble-Free, Easy to Clean & Convenient to Use

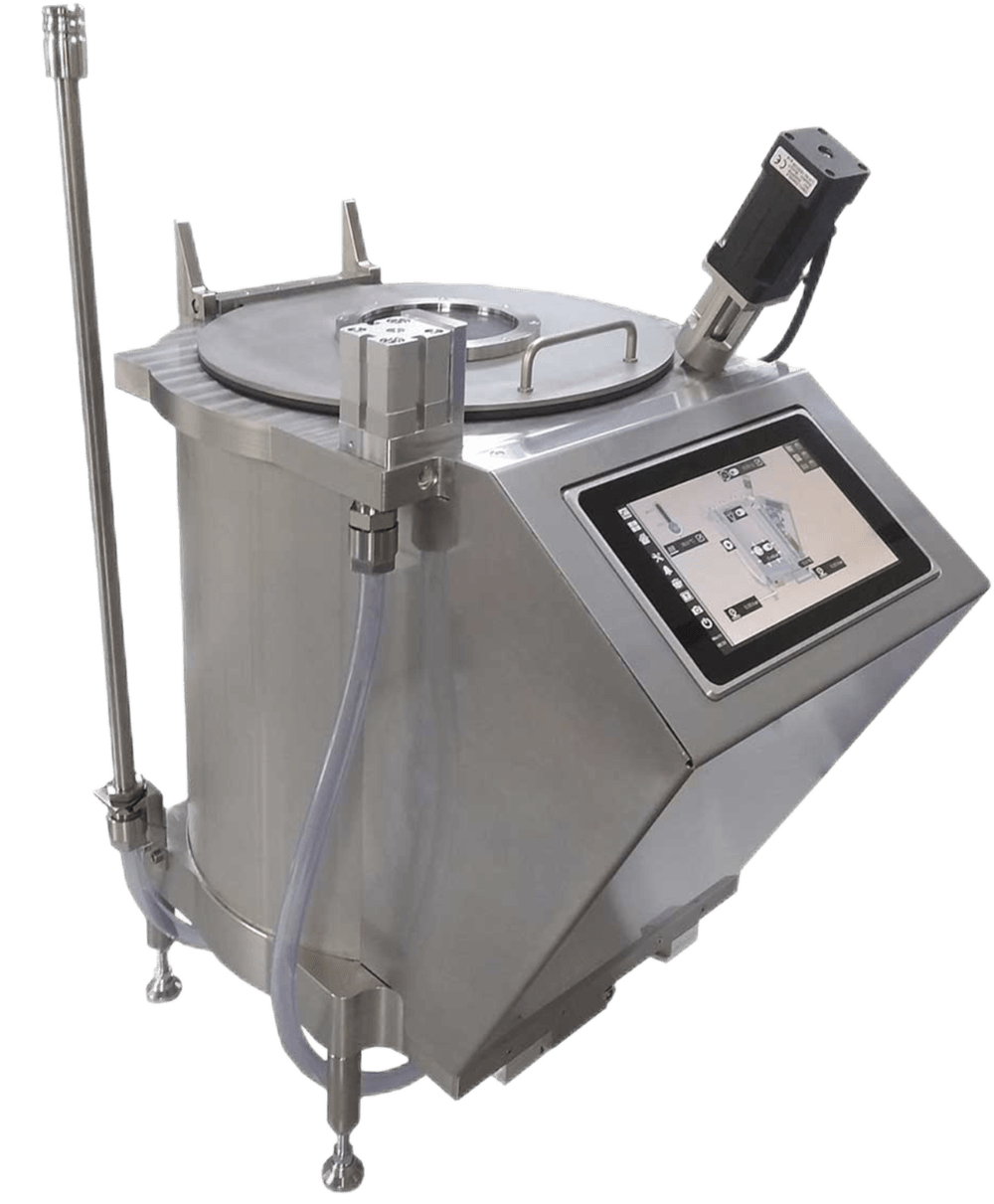

The multifunctional adhesive tank integrates functions including vacuum degassing, stirring, heating, liquid level detection and liquid delivery. The standard versions are available in two specifications: 3L and 25L, while other specifications and optional functions can also be customized according to customer requirements. Adopting a modular structure design, it allows easy cleaning within an extremely short time. It is specially designed for the storage and supply of medium and low viscosity adhesives.

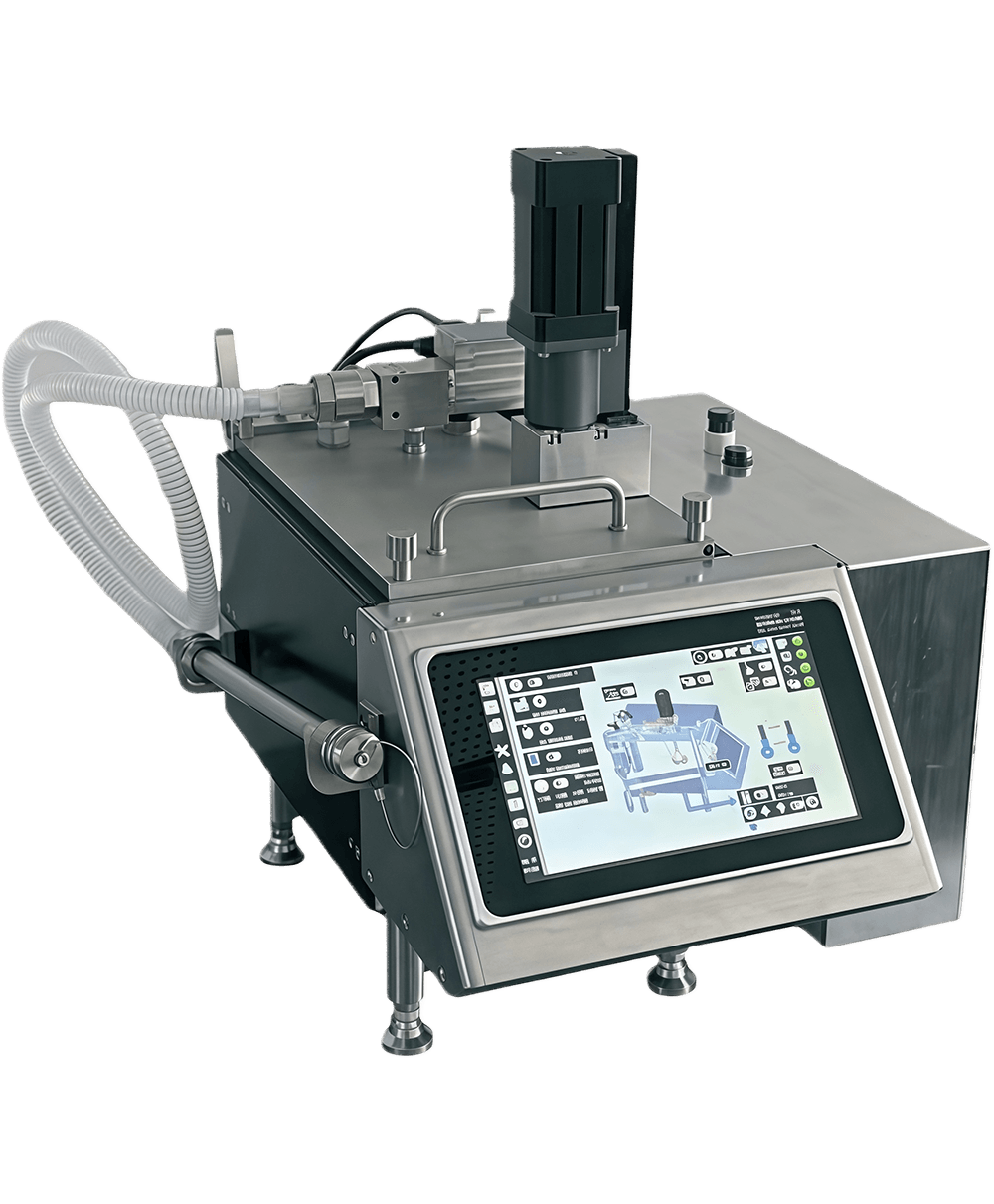

The 3L adhesive tank is machined from a single block of stainless steel, capable of withstanding high pressure, achieving better sealing performance and longer adhesive storage duration. The integrated Venturi valve can generate a vacuum of up to 300mbar, and the vacuum level can be further enhanced by connecting an external vacuum pump to the cover.

Product Features

• Equipped with a vacuum pump and a feeding plunger pump, it is used for fluid degassing to achieve bubble-free feeding to valves.

• Minimizes dead volume and keeps material loss below 0.5%.

• Comprehensive control of parameters such as liquid level and vacuum degree is available via HMI or external Modbus protocol.

• Nitrogen compatible.

• Optimized cleaning parameters: material changeover and cleaning take only 15-30 minutes.

• Various capacities available — 3 to 25 liters.
