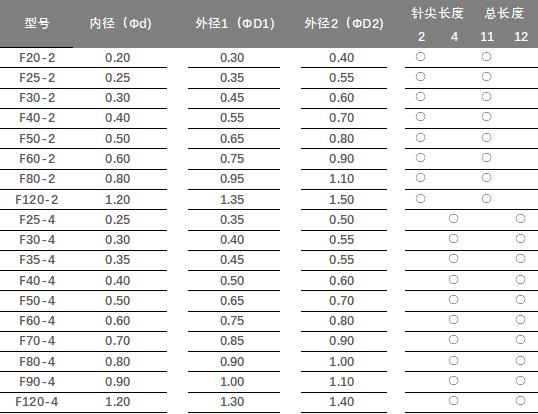

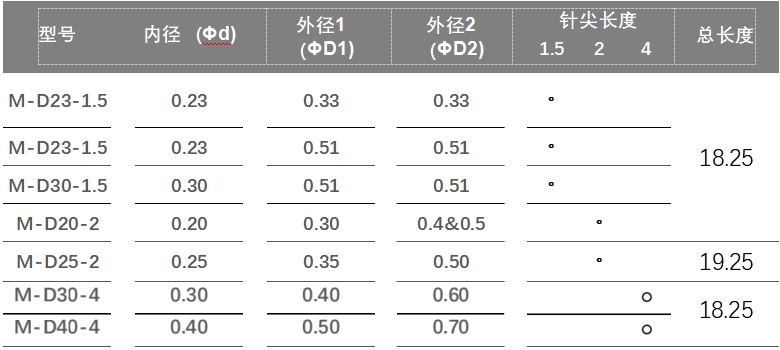

Split-Type M3.5 Single Dispensing Needle Series

Applicable to dispensing industries such as SMT, LED, semiconductor manufacturing and pharmaceuticals

• Adopts product surface polishing technology, which can solve the problems of adhesive climbing and stringing of dispensing materials
  The dispensing outlet is treated with thin walls, enabling small-caliber outlets to have a relatively large dispensing volume
  To ensure fluidity, a step-free internal design is adopted to improve dispensing precision and extend product service life

• Applicable media: Various adhesives  Phosphors   Silicone   Two-component adhesives   Instant adhesives Water-soluble adhesives, etc.
  Various solder pastes  Conductive adhesives   RTV adhesives  Epoxy adhesives  Anaerobic adhesives Polyurethane, etc.
  Various coatings  Additives  Emulsions Viscous raw materials  Paints Oils, various high-viscosity UV adhesives  Optical adhesives

• Suitable equipment: Multi-head ceramic valve high-speed dispensers such as Musashi, Hans Jongseong Winston  Tengsheng  Napuda Alesis, etc.

*Please contact us if you require sizes other than those listed above    Material: SUS303

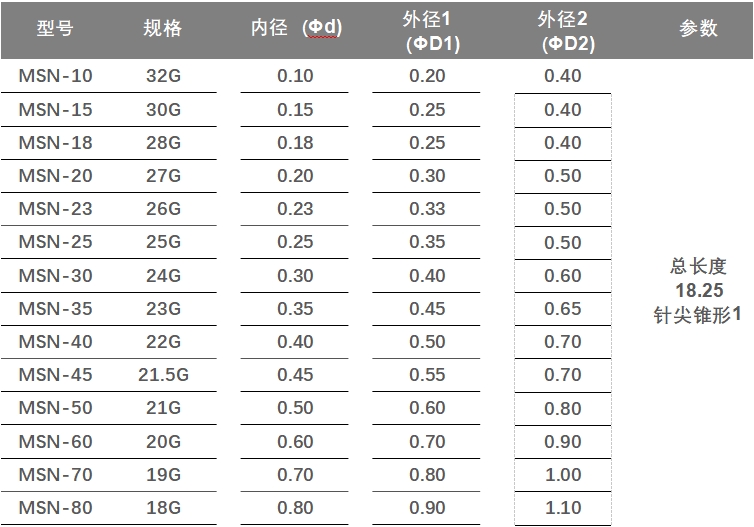

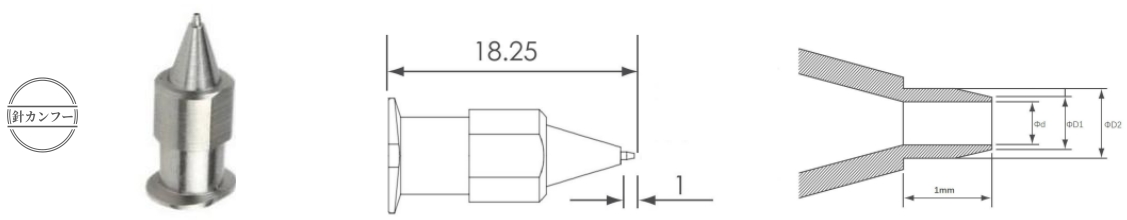

One-Piece Single-Orifice Dispensing Needle Series

Applicable to dispensing industries such as SMT, LED, semiconductor manufacturing and pharmaceuticals

• Adopts product surface polishing technology to solve the problems of adhesive climbing and stringing of dispensing materials. The dispensing outlet is treated with thin walls, enabling small-caliber outlets to have a relatively large dispensing volume
  To ensure fluidity, a step-free internal design is adopted to improve dispensing precision and extend product service life

• Applicable media: Various adhesives  Phosphors   Silicone   Two-component adhesives   Instant adhesives Water-soluble adhesives, etc.
  Various solder pastes  Conductive adhesives   RTV adhesives  Epoxy adhesives  Anaerobic adhesives Polyurethane, etc.
  Various coatings  Additives  Emulsions Viscous raw materials  Paints Oils, various high-viscosity UV adhesives  Optical adhesives

• Suitable equipment: Luer lock interface valve dispensers such as Musashi, Hans Jongseong Winston  Tengsheng, etc.

Unit：mm

*Please contact us if you require sizes other than those listed above    Material: SUS303

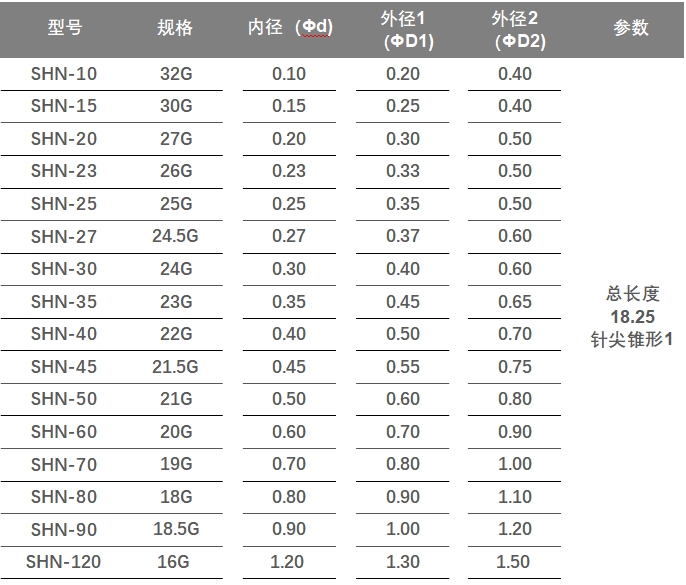

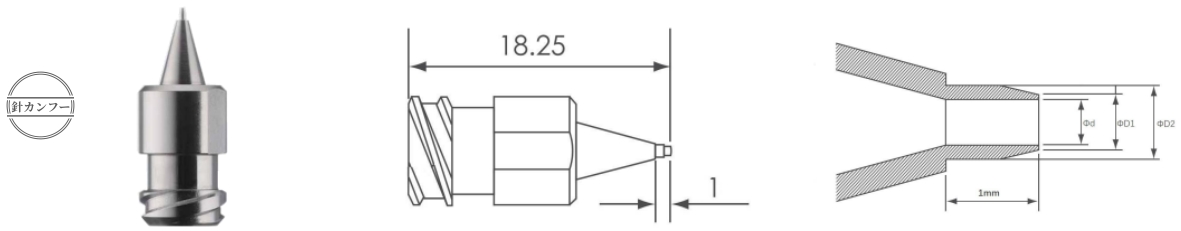

One-Piece Threaded Dispensing Needle Series

Applicable to dispensing industries such as SMT, LED, semiconductor manufacturing and pharmaceuticals

• Adopts product surface polishing technology to solve the problems of adhesive climbing and stringing of dispensing materials. The dispensing outlet is treated with thin walls, enabling small-caliber outlets to have a relatively large dispensing volume
  To ensure fluidity, a step-free internal design is adopted to improve dispensing precision and extend product service life

• Applicable media: Various adhesives  Phosphors   Silicone   Two-component adhesives   Instant adhesives Water-soluble adhesives, etc.
  Various solder pastes  Conductive adhesives   RTV adhesives  Epoxy adhesives  Anaerobic adhesives Polyurethane, etc.
  Various coatings  Additives  Emulsions Viscous raw materials  Paints Oils
  Various high-viscosity UV adhesives  Optical adhesives

• Suitable equipment: Luer lock interface valve dispensers such as Musashi, Hans Jongseong IEI Genesis, Winston  Tengsheng, etc.

Unit：mm

*Please contact us if you require sizes other than those listed above    Material: SUS303

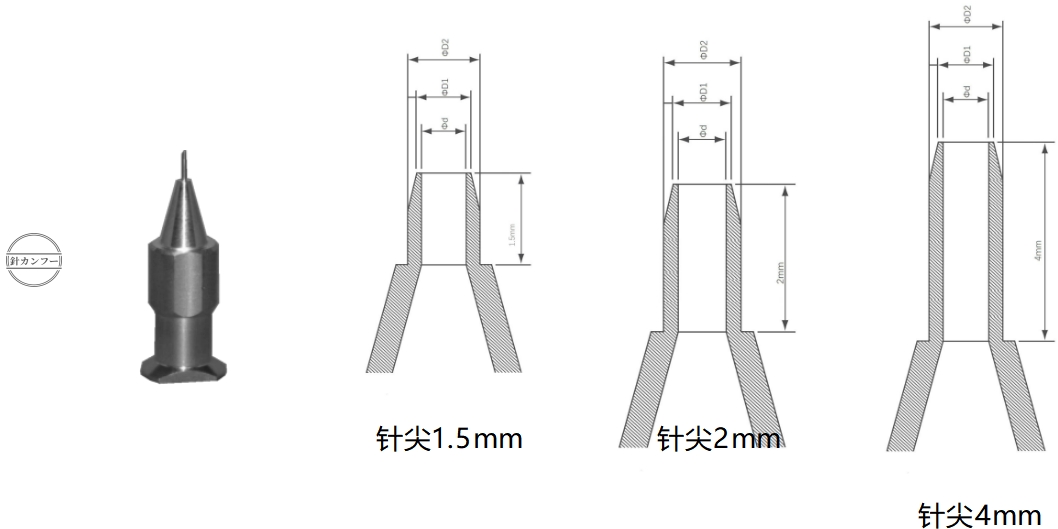

Single-Orifice One-Piece Extended-Tip Series

Applicable to dispensing industries such as SMT, LED, semiconductor manufacturing and pharmaceuticals

• Adopts product surface polishing technology to solve the problems of adhesive climbing and stringing of dispensing materials. The dispensing outlet is treated with thin walls, enabling small-caliber outlets to have a relatively large dispensing volume
  To ensure fluidity, a step-free internal design is adopted to improve dispensing precision
  and extend product service life

• Applicable media: Various adhesives  Phosphors   Silicone   Two-component adhesives   Instant adhesives Water-soluble adhesives, etc.

• Various solder pastes  Conductive adhesives   RTV adhesives  Epoxy adhesives  Anaerobic adhesives Polyurethane, etc.
  Various coatings  Additives  Emulsions Viscous raw materials  Paints Oils
  Various high-viscosity UV adhesives  Optical adhesives

• Suitable equipment: Luer lock interface valve dispensers such as Musashi, Hans Jongseong Winston  Tengsheng, etc.

Unit：mm

*Please contact us if you require sizes other than those listed above    Material: SUS303

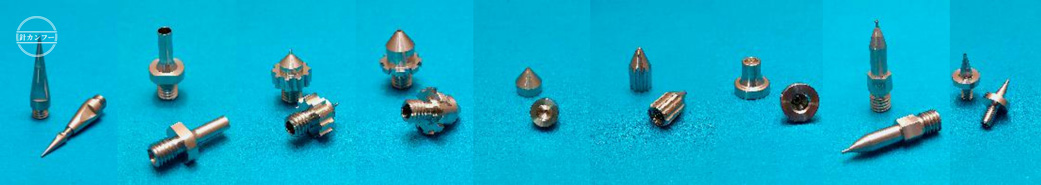

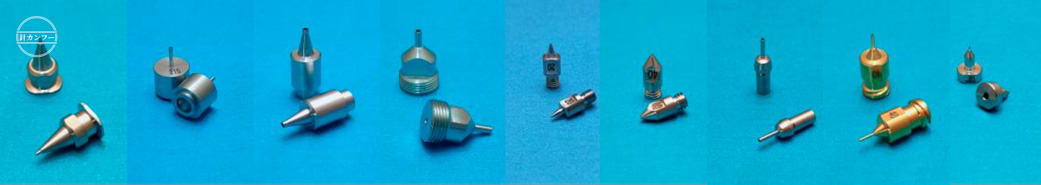

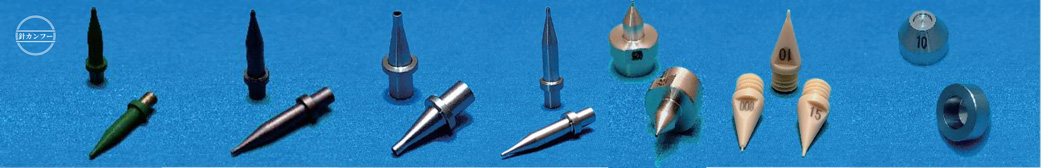

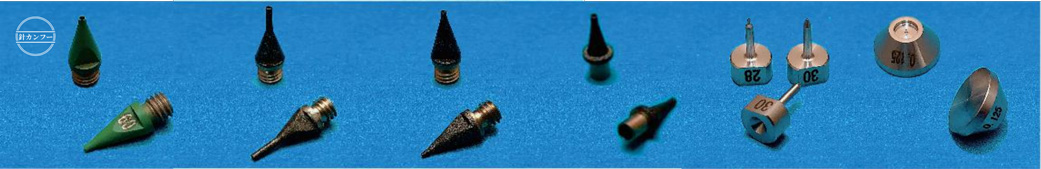

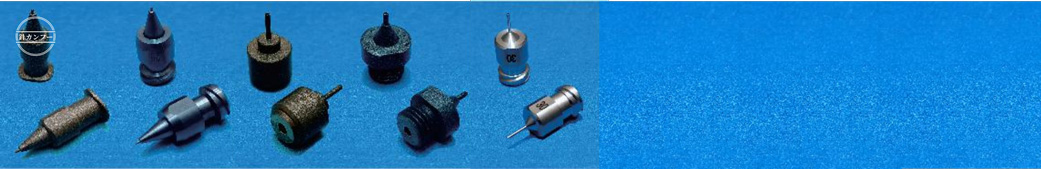

Zhen Kungfu - Special Customization Showcase
