Product Introduction

TV/PR/D10* is a piezoelectric three-way pneumatic regulator, which can set pressure values for MTV series components — among them, the MTV/PR/D10A model has a pressure range of 0~8 bar, and the MTV/PR/D10B model has a pressure range of 0~10 bar. RS485/MAB485 serves as its communication interface with the controller, through which write and read operations can be performed on Non-Volatile Variables (NVARs).

Product Features

• Compact and sophisticated structure, saving installation space

• Precision pressure stabilization with a maximum accuracy of ±0.01 bar

• Expandable for adhesive supply, pressure regulation and air duct control

• HMI enables synchronous setting and monitoring of up to 80 PR units with minimal footprint

The Piezoelectric Ceramic Pressure Regulation Module is connected to and configured with the required adhesive supply pressure via the HMI. The pressure values can be monitored and stored in the EHM, and can be traced in the history module.

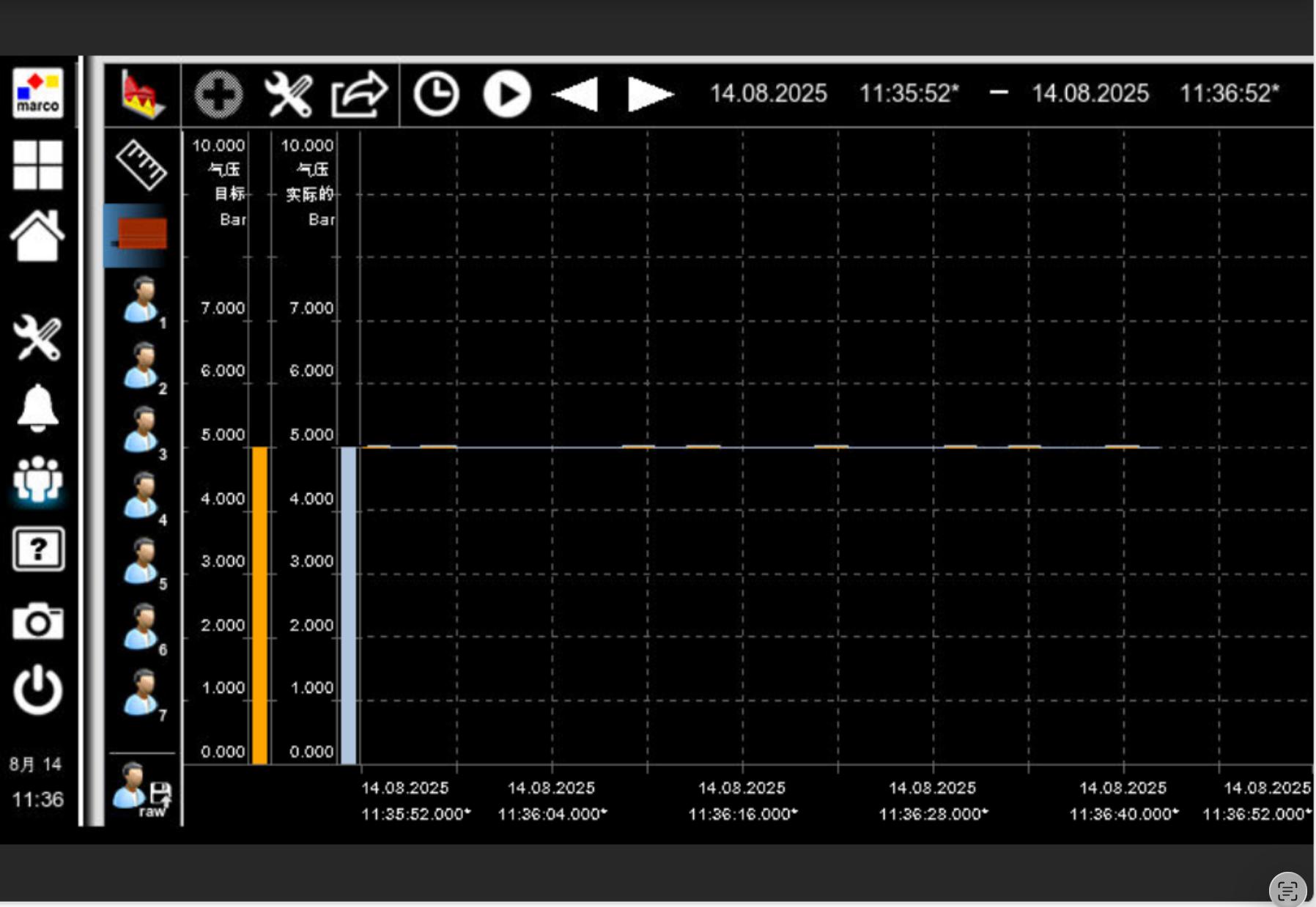

Yellow represents the set pressure, and blue represents the records of actual pressure during different time periods.
