Product Introduction

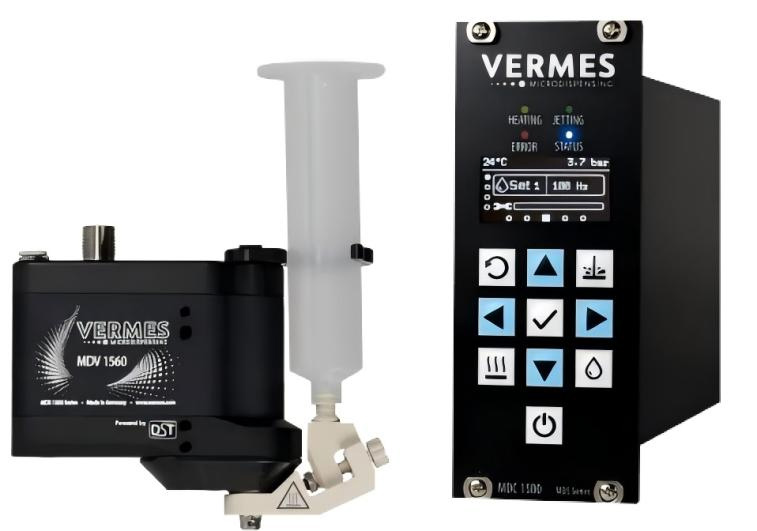

The MDS 1560 Microdispensing System is based on DST Dynamic Shock Technology.

DST Technology greatly optimizes valve efficiency to achieve optimal dispensing results.

The MDS 1560 Microdispensing System is suitable for industrial dispensing applications involving fluids of varying viscosities.

• DST (Dynamic Shock Technology)

• Wide Application Range

• Optimal Dispensing Results

• Proprietary Compression Technology, ideal for high-power and high-speed dispensing

• Simplified Parameter Settings

• Convenient Installation and Maintenance

• Integrated Heating Block

The MDS 1560 is based on DST (Dynamic Shock Technology), an innovative drive principle developed by VERMES.

Even at the shortest stroke, this system delivers powerful, high-speed, and precise dispensing operations.

Product Advantages

DST (Dynamic Shock Technology), an innovative drive principle technology developed by VERMES, greatly optimizes valve efficiency to achieve optimal dispensing results.

Based on VERMES' brand-new microdispensing technology, the MDV 1560 dispensing valve enables maximum-frequency dispensing, with a dispensing speed higher than any other electric dispensing valve on the market.

The MDS 1560 Microdispensing System provides continuous power transmission, delivering the fastest and most precise dispensing even at the minimum stroke.

It integrates nozzle heating function and temperature control system to ensure stable dispensing temperature, providing optimal kinematic viscosity conditions for various dispensing media.

The MDS 1560 System is equipped with optimized channel guidance and compression geometry.

Dispensing parameters are easy to modify, and dispensing results remain consistent even when environmental conditions change.

The MDV 1560 dispensing valve has three surfaces available for mounting on dispensing equipment, and its fluid cartridge can be rotated at different angles to maximize installation flexibility.

The quick-release fluid cartridge allows for faster and easier plunger replacement without additional auxiliary tools.

It is compatible with all components provided by VERMES to maximize configuration flexibility.

Media Recommendations

This system provides optimal dispensing solutions for fluids of varying viscosities, ranging from low-viscosity aqueous solutions to high-viscosity solder paste.

Examples include:

• Solder Paste Grade 5 and above

• Flux

• Organic Solvents

• Weak Acids or Weak Bases

• Various Aqueous Solutions

Application Examples

This system is suitable for industrial dispensing applications involving fluids of varying viscosities.

The MDS 1560 is based on DST (Dynamic Shock Technology), an innovative drive principle developed by VERMES. It provides a reliable dispensing solution for solder paste Grade 5 and above, eliminating medium residue and clogging at the plunger tip.

The jet dot size can be as low as below 1 nanoliter.

This system is suitable for a variety of industries, such as the electronics manufacturing industry, consumer electronics industry, automotive manufacturing industry and medical technology industry.
